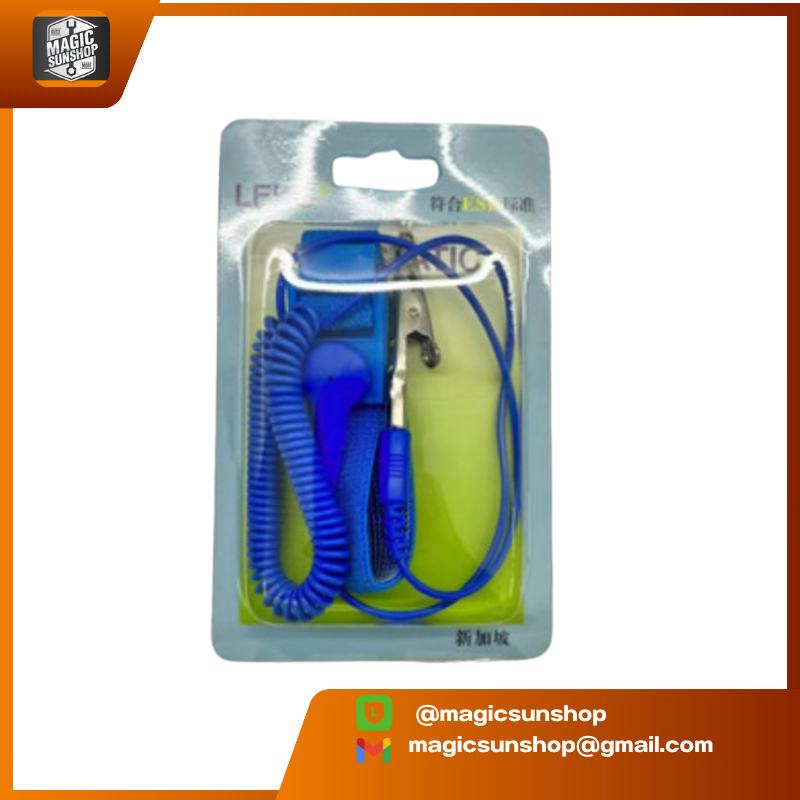

918328 LEKO PVC anti-static wrist strap สายรัดกันไฟฟ้าสถิตย์แบบมีสาย 3 เมตร

One: component:

1: Double circuit Pvc belt: high elasticity anti-sway, pure pvc rubber compound;

2: Alligator clip: stainless steel movable clip

3: Conductive gauze: woven with fine conductive yarn;

4: Automatic detection of alarm devices

Two: Instructions for use:

1: Double-circuit Pvc belt is connected with one end to automatically detect the alarm device, pull the pull switch to the left to open, and it can be used;

2: Connect the grounding system with the alligator clips at both ends to form a conductive loop system.

3: Under normal good working condition, the red indicator light and the green indicator light are not lit, and no alarm sound is emitted. When the human body is in poor contact with the detector, the red light is on and an alarm sound is sounded; when the human body is in poor contact with the earth When the green light is on and an alarm sound is sounded; when the human body and the wrist band and the earth are in poor conductive contact, the red light and the green light are simultaneously illuminated and an alarm sound is sounded; when the human body electrostatic resistance is greater than 10 megohms, an alarm is also reported.

Three: Note:

1: When the battery is exhausted, replace the lithium battery pool, double-loop PVC belt, alligator clip;

Five: Weight: 0.06 kg

The normal battery life is half a year.

2: When the surface of the human body itself is dry, the red light will be bright. At this time, the surface of the body part is to be humidified to keep the static resistance of the operator normal;

Four: replaceable accessories: detector power
