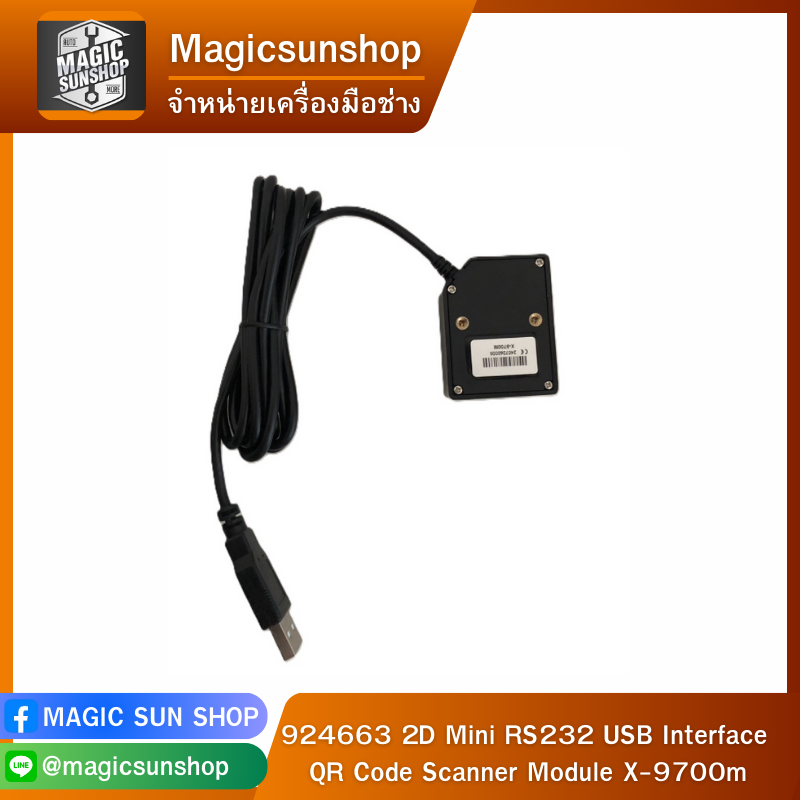

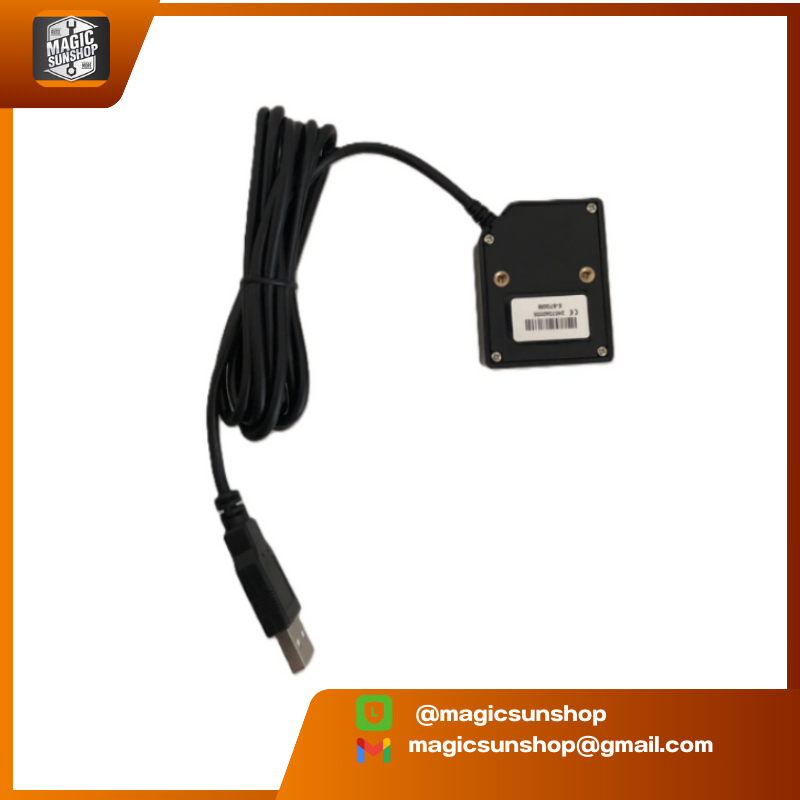

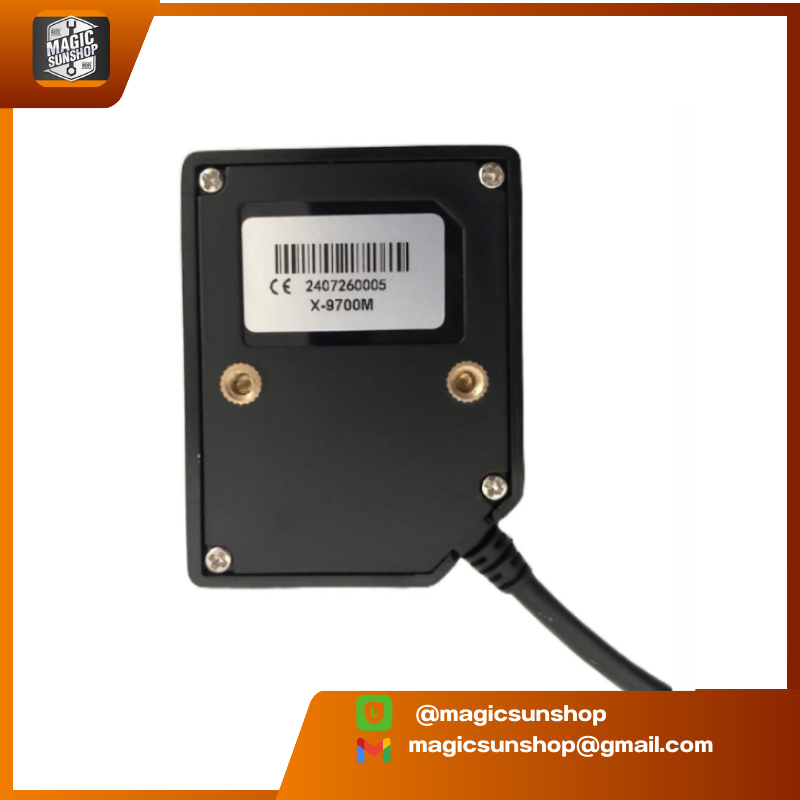

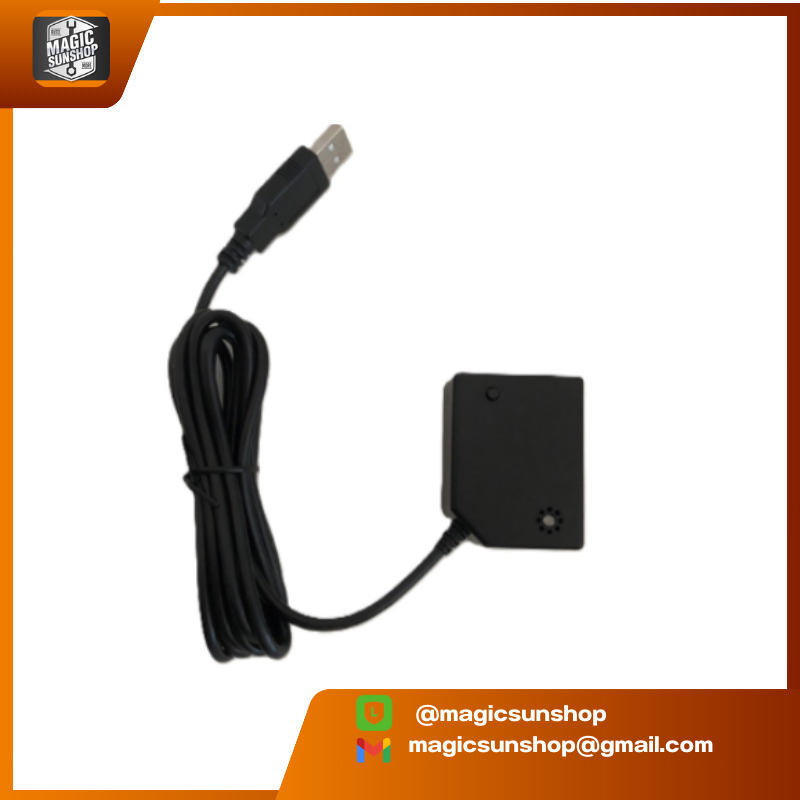

924663 2D Mini RS232 USB Interface QR Code Scanner Module X-9700m

The 2D Mini RS232 USB Interface QR Code Scanner Module X-9700m is a versatile barcode scanner module designed for various applications. Here are some key details:

• Interface Options: USB, RS232, TTL5V, RS485
• Scanning Speed: 200 scans per second
• Resolution: 640 x 480 pixels (CMOS sensor)
• Voltage: 3.3 VDC
• Current: 170 mA
• Minimum Print Contrast: 20%
• Motion Tolerance: >25 cm/s
• Dimensions: 60.99 mm x 64.84 mm x 21.8 mm
• Weight: 32.5g
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% to 95% (non-condensing)
