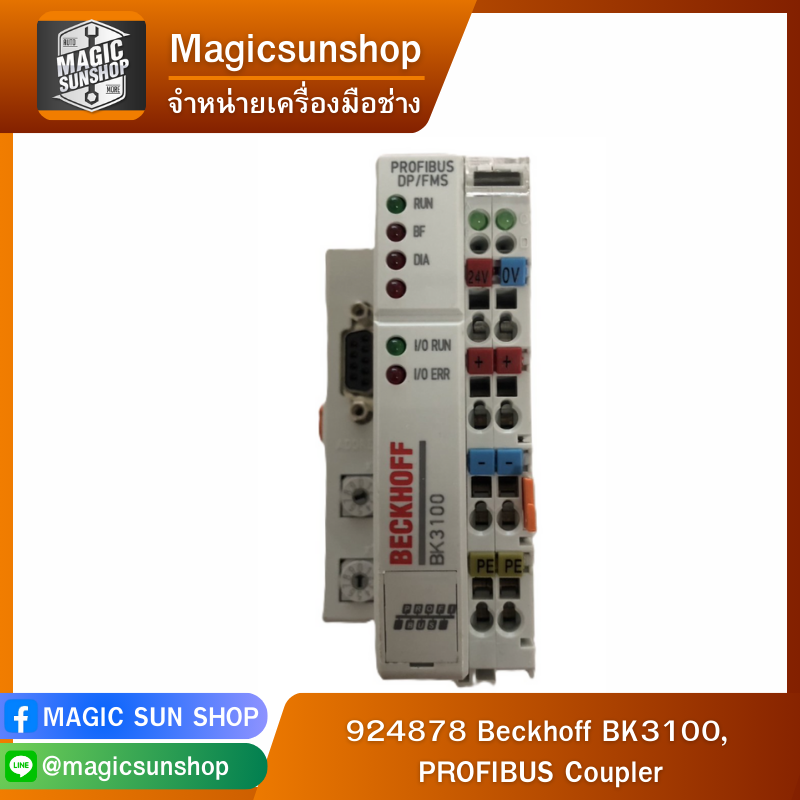

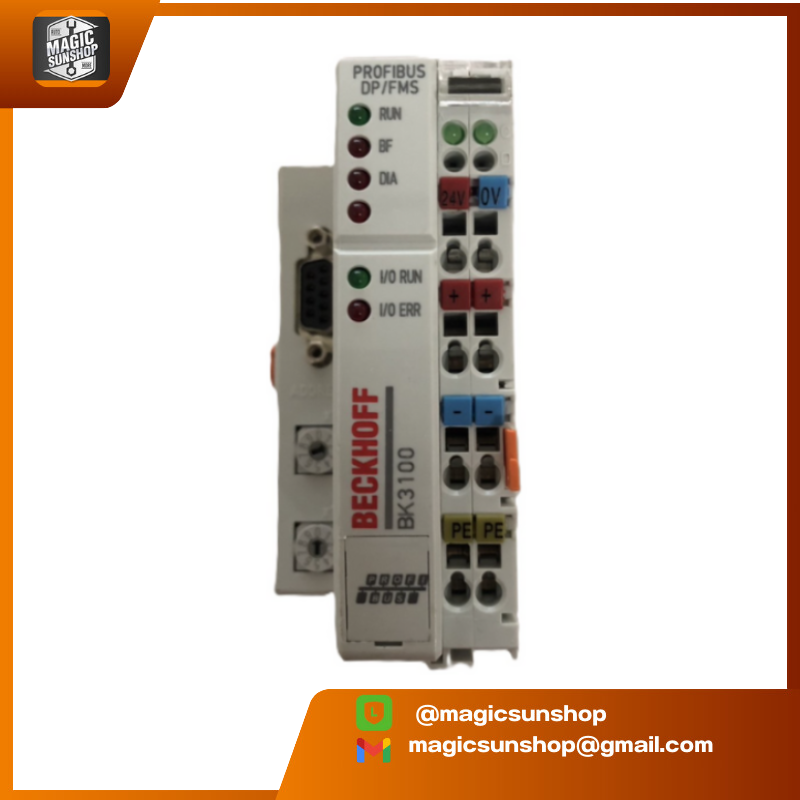

924878 Beckhoff BK3100, PROFIBUS Coupler

The Beckhoff BK3100 is a PROFIBUS Bus Coupler that connects the PROFIBUS system to electronic terminal blocks, which can be extended in a modular fashion. Here are some key details:

• Number of Bus Terminals: Up to 64 terminals can be connected.
• Fieldbus Interface: Supports both DP and FMS modes with data transfer rates up to 12 Mbaud.
• Peripheral Signals: Supports 512 digital inputs/outputs and 64 analog inputs/outputs (only in DP mode).
• Configuration: Can be configured via KS2000 software or the controller.
• Power Supply: 24 V DC with a maximum input current of 500 mA.
• Operating Temperature: 0 to +55°C.
• Housing: Compact terminal housing with signal LEDs, designed for installation on a 35 mm DIN rail
