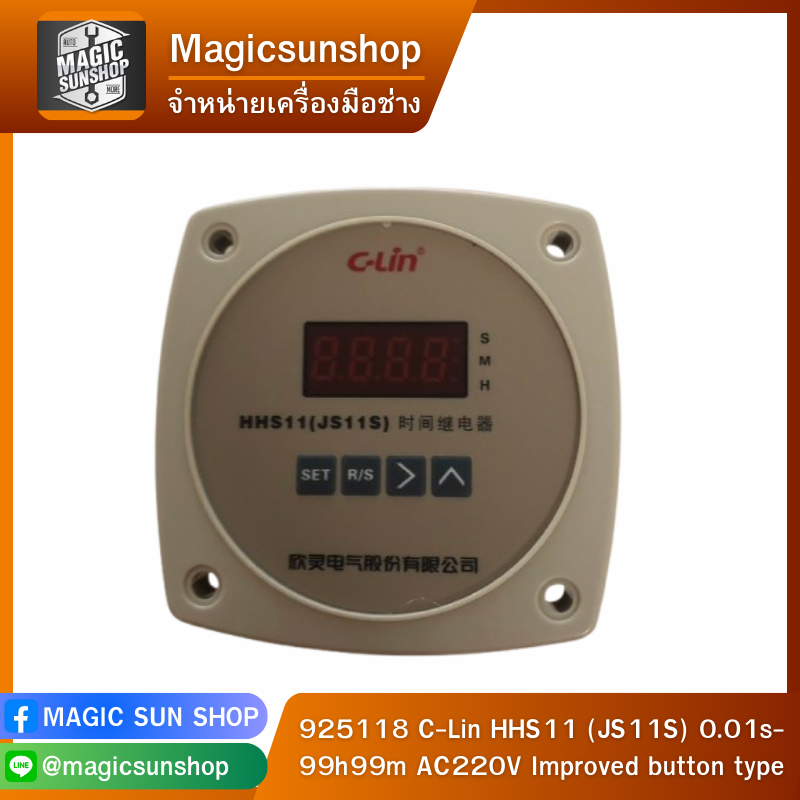

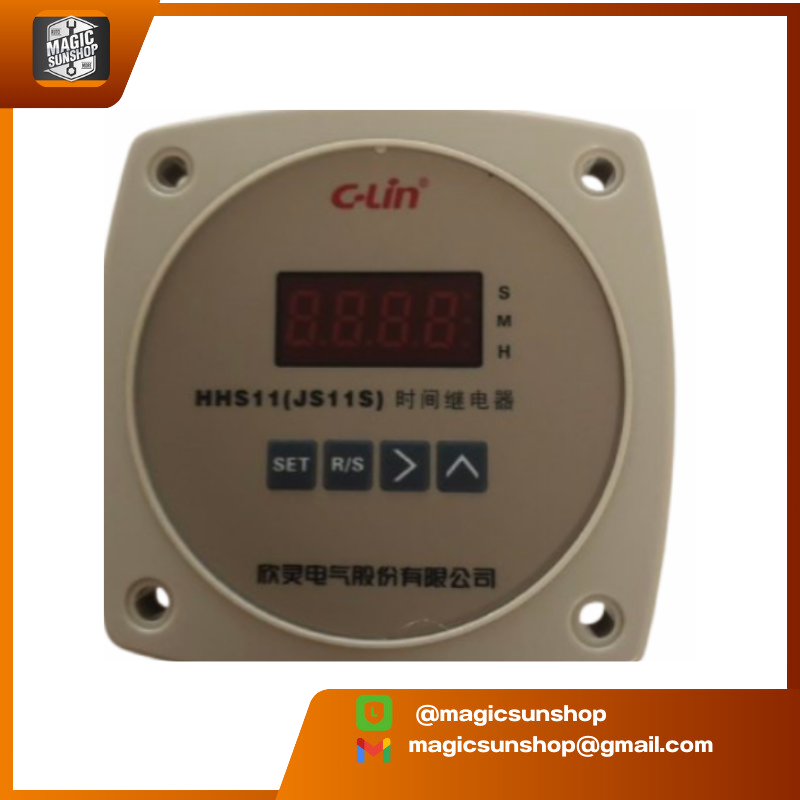

925118 C-Lin HHS11 (JS11S) 0.01s-99h99m AC220V Improved button type

The C-Lin HHS11 (JS11S) is an improved version of a time relay with a delay range of 0.01 seconds to 99 hours 99 minutes. Here are some key details:

• Operating Voltage: AC220V (also available in DC24V, AC24V, and AC380V)
• Delay Range: 0.01 seconds to 99 hours 99 minutes
• Operating Mode: Power-on delay
• Temperature Range: -5°C to 40°C
• Display: Intuitive with convenient button operation
• Structure: Compact and aesthetically pleasing
• Internal Components: High-precision microcomputer chip for strong resistance to interference
• Dimensions: 95×95×101mm
• Mounting: Panel-mounted with a hole size of 4-Φ5/70×70mm Φ81.2mm
