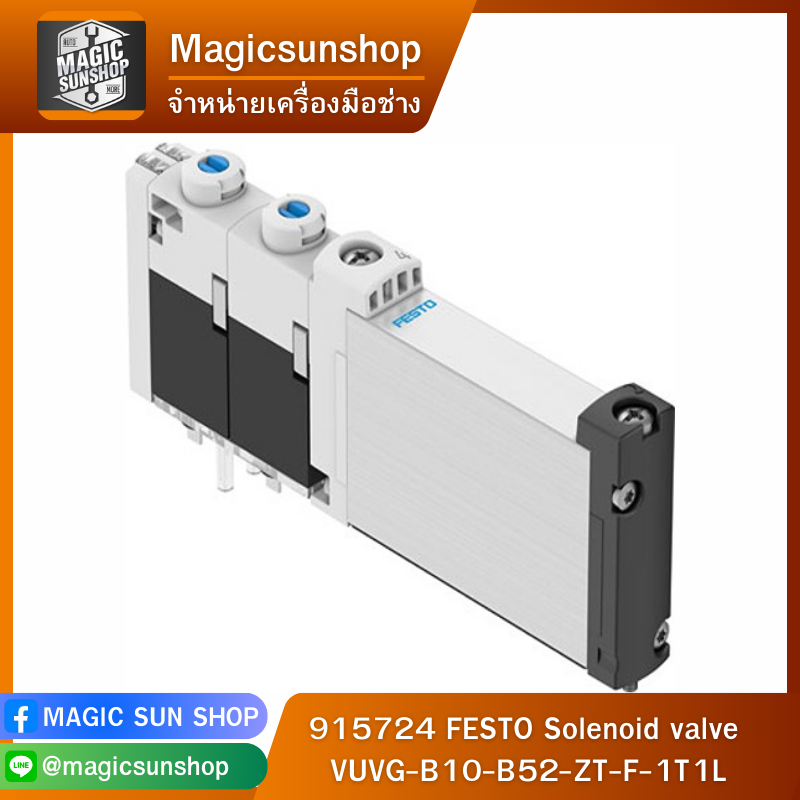

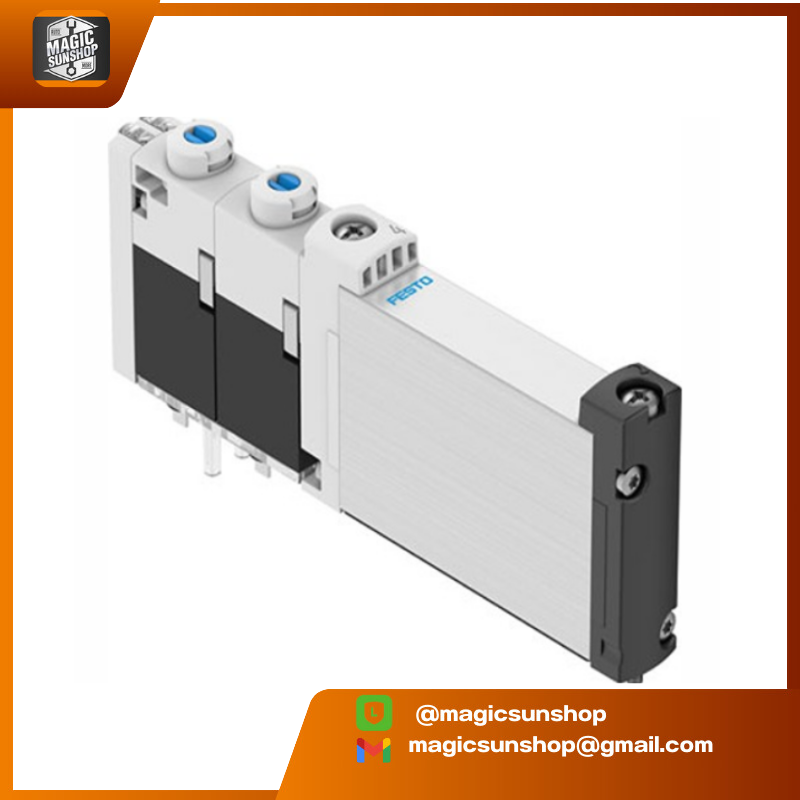

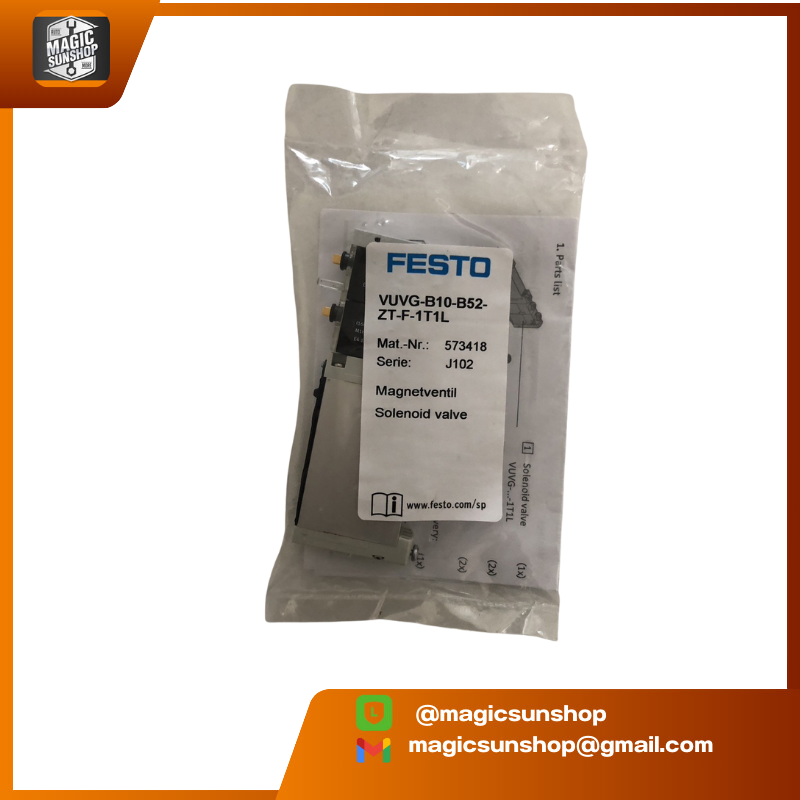

915724 FESTO Solenoid valve VUVG-B10-B52-ZT-F-1T1L

The VUVG-B10-B52-ZT-F-1T1L solenoid valve from FESTO is a 5/2 bistable valve, which means that it can be switched between the two states using electrical excitation. The valve size is 10 mm and has a standard flow rate of 220 l/min.1.



Main features:



Working Pressure: -0.9 to 10 bar

Design Structure: Piston slide

Installation: Can be installed in any position.

Signal Status Display: LED

Operating Temperature: -5 to 60°C

Electrical Connection: Via Manifold Block

Weight: 60g
