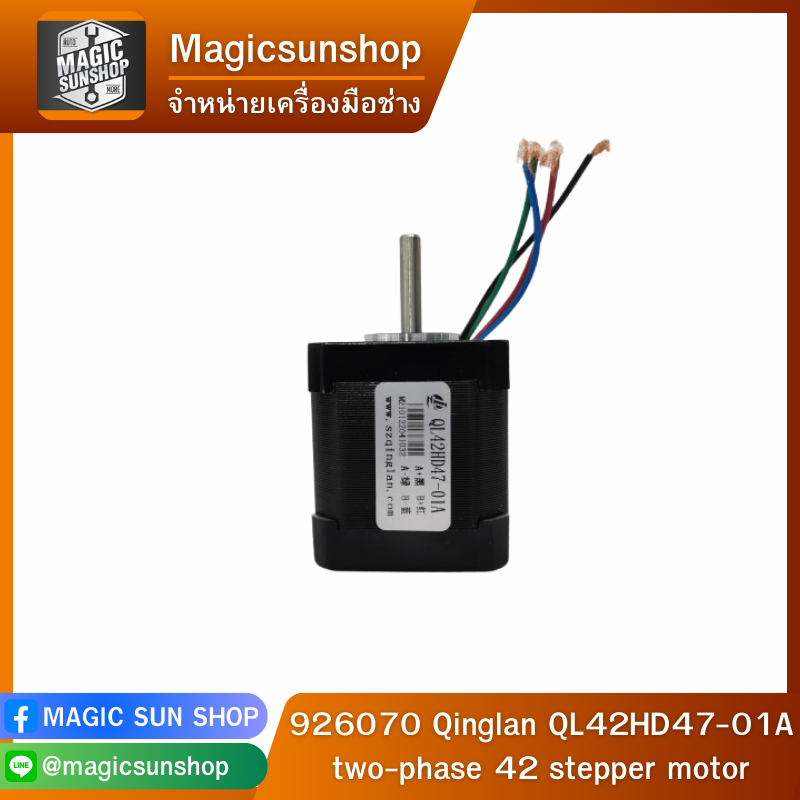

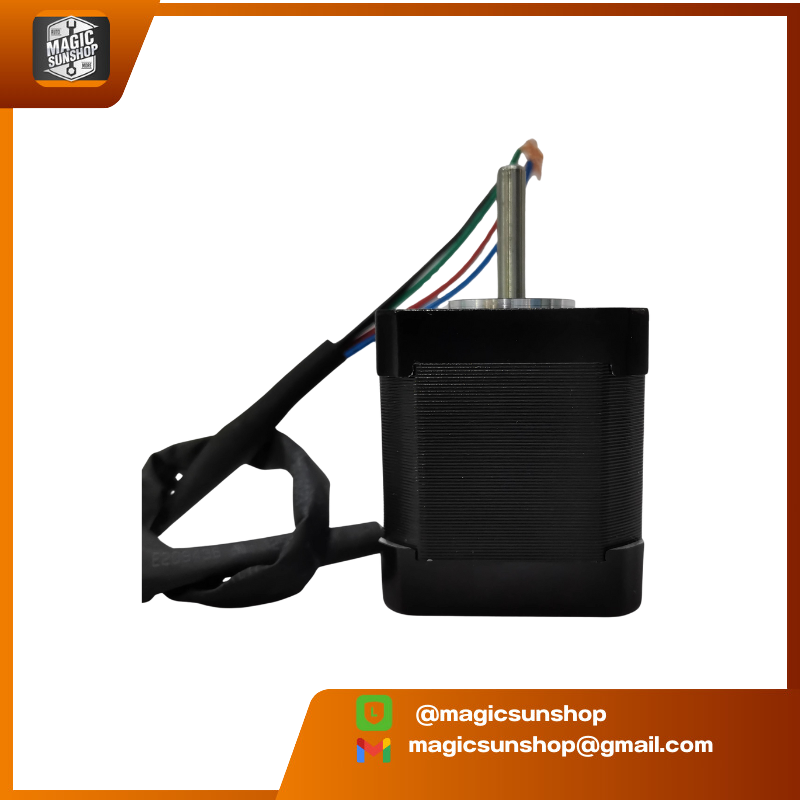

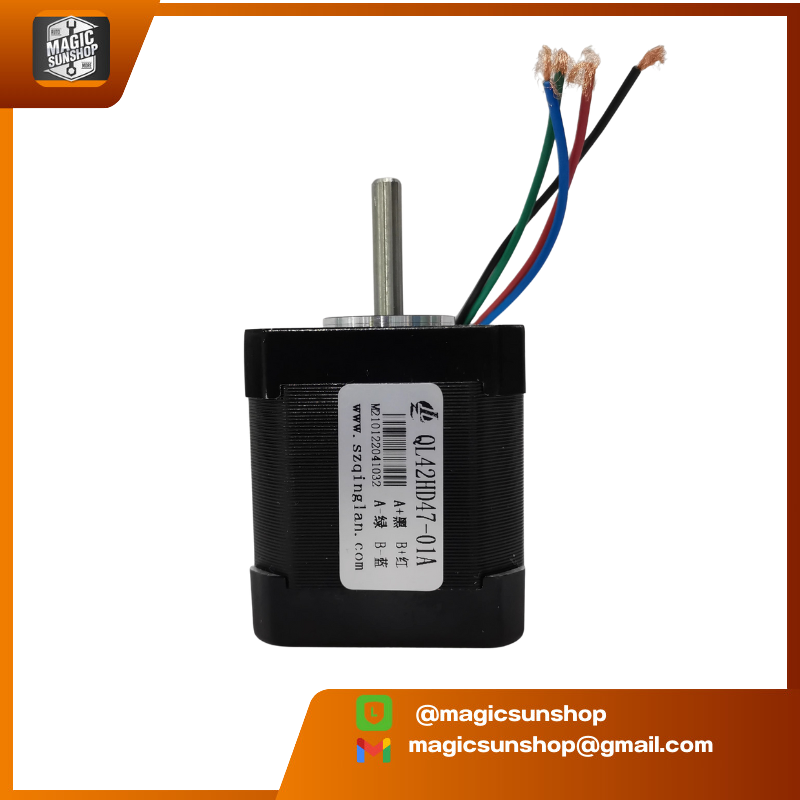

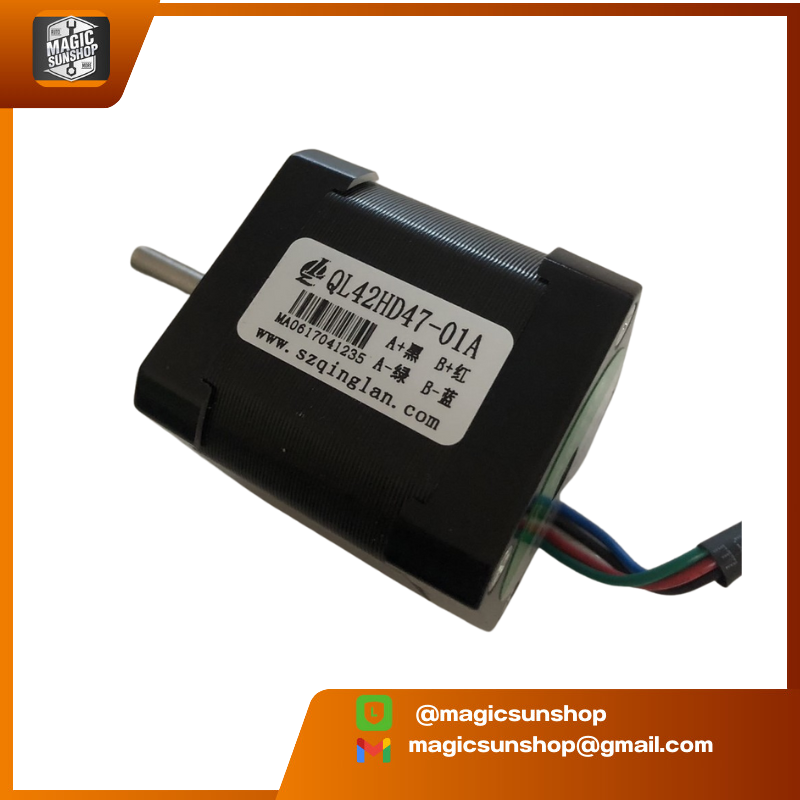

926070 Qinglan QL42HD47-01A two-phase 42 stepper motor

Product Description

- 42 Series 2-Phase, High Torque Hybrid Stepper Motor with 0.9° step angle from FULLING MOTOR
- Step angle: 0.9°
- Step angle accuracy: ± 5% (full step, no load)
- Resistance accuracy: ± 10% (20℃)
- Inductance accuracy: ± 20% (1kHz)
- Temperature Rise: 80℃ Max.
- Ambient Temperature: -20℃～+50℃
- Insulation Resistance: 100MΩ Min. ,500VDC
- Dielectric Strength: 500VAC for one minute
- Max. radial force: 28N (20mm from the flange)
- Max. axial force: 10N
